Section Rendering
The

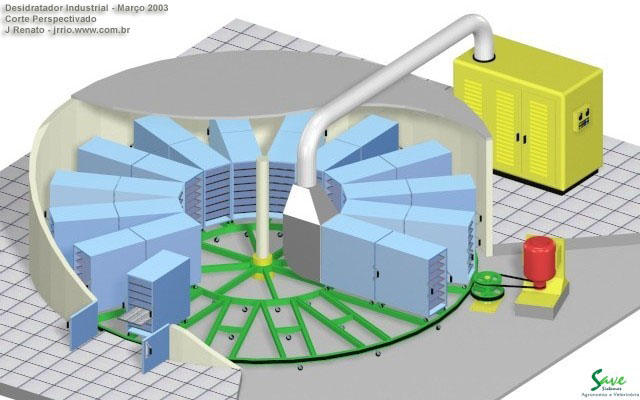

picture below shows the 3d section of a machinary or a cutaway
drawing.
About
the Present Rendering Service
The
Dehydration Machine 3d model were made to generate static images. This client was an
engineer who wanted a technical illustration to give a clear and
comprehensible view of a machine he had designed. The way we chose to make this presentation it was with part of the outside omitted to reveal the inner parts.
The
client used the static image generated from the 3D model to display in a
stand fair exhibition and as promotional printed material.
The
3D model were accurately made according to the design. The 3d rendering
is non-photorealistic, it seems more a stylized representation to
photorealism.
The aim of this presentation had more to do with
conceptual tecnical explanation than aesthetic aspects.
About
the 3d Modeling and 3d Rendering Process
Regarding
the 3d modeling work, to built the 3d models shown in this page I used Autocad software.
Regarding the render process, I used an old version of 3dsm max, the 3d Studio r.4.
